Jackery – Thuisbatterij – SolarVault 3 Pro Max AC + BP2500 – 5,04kWh

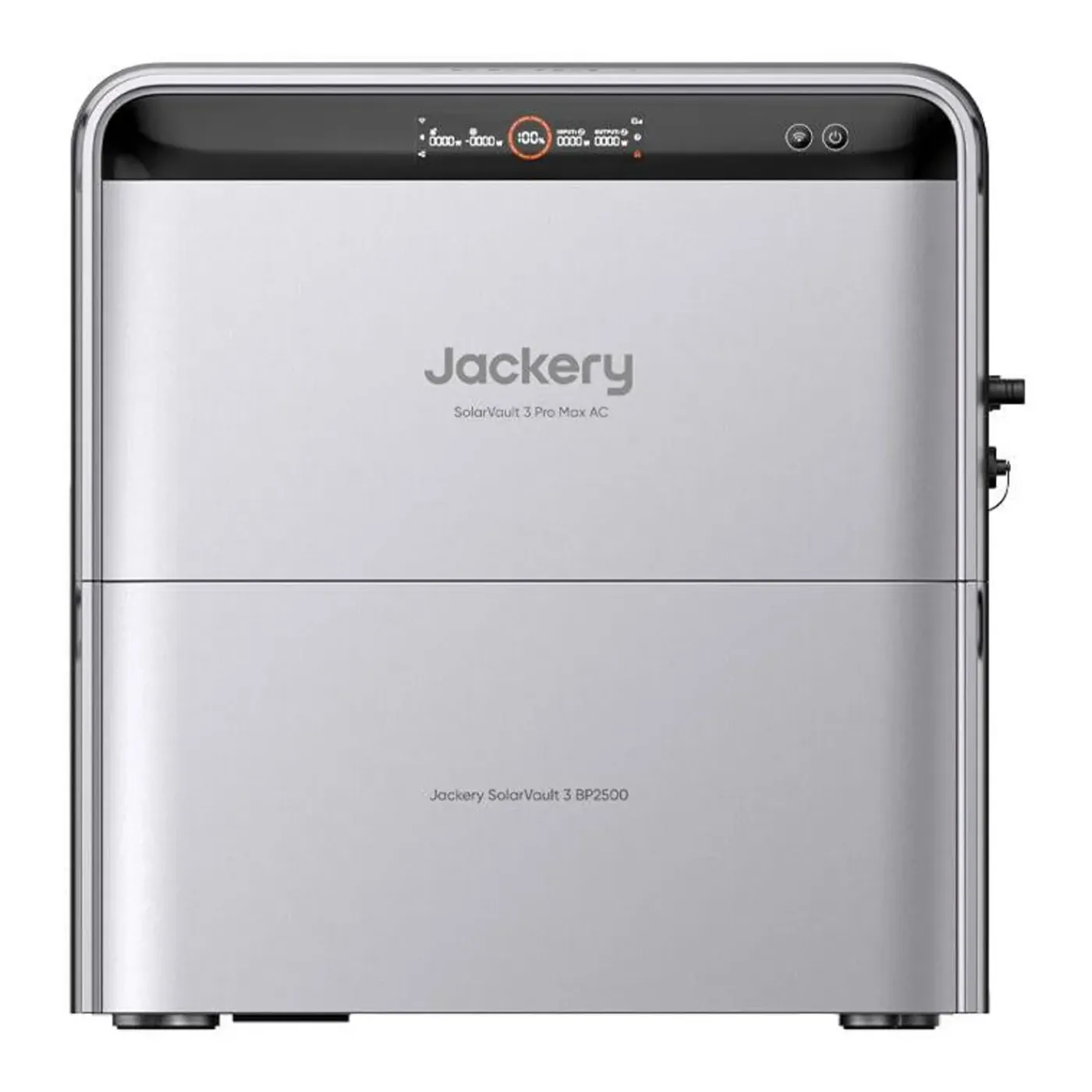

Overview of Jackery SolarVault 3 Pro Max AC and BP2500

The Jackery SolarVault 3 Pro Max AC + BP2500 is an advanced home energy storage system. This powerful bundle provides a massive 5.04 kWh storage capacity. It combines the main AC-coupled base unit with a highly efficient expansion battery module. You can store surplus daytime energy and deploy it when your household needs it most. This intelligent system helps you decrease your reliance on grid electricity. The seamless integration works flawlessly with your existing solar power setup.

Key Features

This premium bundle delivers cutting-edge technology to streamline your household power management.

• 2500W Bidirectional AC Power

  Charge efficiently during low-rate periods and power multiple household appliances simultaneously.

• 4000W Solar Input

  Features 4 independent MPPT inputs to maximize energy capture from multiple roof orientations.

• Smart Energy Management

  AI-driven operation syncs with dynamic tariffs to charge when prices drop and discharge later.

• LiFePO4 Battery Chemistry

  Premium cells ensure long-lasting safety, thousands of charging cycles, and superior thermal stability.

• Integrated Safety System

  Includes an advanced Battery Management System (BMS) and built-in aerosol fire suppression.

• Weatherproof Design

  The exterior is rated IP65 for excellent protection against dust and water ingress.

Specifications

Here is a definitive list of technical specifications for this energy bundle.

• Total Capacity: 5.04 kWh (2.52 kWh Base + 2.52 kWh Expansion)
• AC Power Output: 2500 Watts continuous
• Maximum PV Input: 4000 Watts (4 MPPT)
• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Operating Temperature: -20°C to 55°C
• Connectivity: Wi-Fi, Bluetooth, Ethernet
• Noise Level: Under 30 decibels
• Protection Rating: IP65

Size and Weight

The system is built to be robust yet manageable for a stationary home energy solution.

• Combined Weight: The total system weighs approximately 47 kg. This is comparable to the weight of an adult German Shepherd or a large bag of cement.
• Dimensions (Base Unit): The base measures 485 x 248 x 282 mm. This footprint is roughly similar to a standard microwave oven, making it compact enough for a utility room.

Real-life Applications

Discover how this powerful battery system enhances your daily energy routines.

• Peak Shaving: Draw stored power during peak evening hours to lower electricity bills.
• Household Backup: Keep essential appliances running seamlessly during unexpected grid outages.
• High-Demand Appliance Support: Simultaneously operate energy-intensive devices like refrigerators, microwaves, and washing machines.
• Optimized Balcony Power Plants: Store excess energy generated by your plug-and-play solar setup instead of exporting it.

Compatibility

This system pairs perfectly with several essential tools and accessories for maximum efficiency.

• Smart Energy Meters: Seamlessly integrates with compatible smart meters for real-time grid export monitoring.
• Existing Solar Installations: The AC-coupled design allows easy retrofitting into established solar PV systems.
• Jackery App: Fully compatible with the official mobile software for remote monitoring and central energy management.
• Jackery BP2500 Modules: Perfectly matches extra BP2500 battery units for future capacity expansion up to 15.12 kWh.

What’s in the Box

Your purchase includes all essential components needed for a basic home setup.

• 1x Jackery SolarVault 3 Pro Max AC Base Unit
• 1x Jackery SolarVault 3 BP2500 Expansion Battery
• 1x Base-to-Battery Connection Cable
• 1x AC Charging Cable
• 1x User Manual and Quick Start Guide
• 1x Mounting Hardware Kit

Other Important Information

Please keep the following operational details in mind for optimal performance and safety.

• Dedicated Circuit Recommendation: For consistent output above 800W, connect the unit to a dedicated electrical circuit. This should ideally be verified by a certified electrician.
• Wireless Stacking: Further expansion batteries can connect securely without messy external cables.
• Dynamic Tariffs: Unlocking full financial benefits requires a dynamic energy contract from your utility provider.
• Temperature Resilience: The robust casing maintains safe operation even in freezing environments or hot summers.

Summary of the Jackery SolarVault Bundle

The Jackery SolarVault 3 Pro Max AC + BP2500 offers an unparalleled leap in smart home energy management. You get substantial storage capacity and robust bidirectional power output. This intelligent bundle empowers you to master your daily electricity usage. It ensures you have reliable power during outages while optimizing your energy bills. Upgrade your home energy independence today and experience true power freedom.
